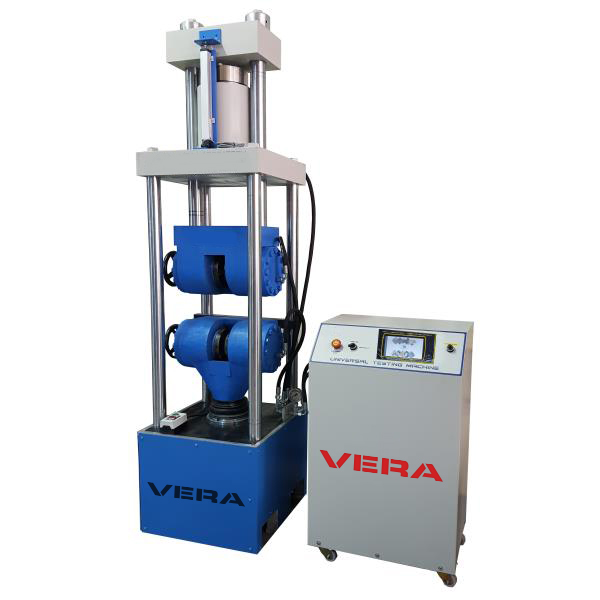

The BMT-S Series Universal Testing Machines feature a rigid four-column frame and a large single test space, designed for versatile and reliable performance. With a 600 mm long piston stroke and a 700 mm vertical test area, they are ideal for testing long specimens and materials with high strain capacity.
Equipped with a Class 0.5 Load Cell and an advanced closed-loop EDC controller with 2,500 Hz data acquisition speed, the system ensures high-precision measurements and seamless sensor synchronization through its 5-channel electronic unit.
Key Features:
• Axial force capacity up to 2000 kN (customizable upon request)
• Electromagnetic displacement sensor for precise actuator positioning
• Fixed crosshead design with ergonomic working height for operator comfort
• Hydraulic wedge grips for round specimens (6–80 mm diameter) and flat specimens (1–30 mm thickness)
• Adjustable load control (0.01 kN/s – 25 kN/s) and displacement control (0.1 mm/min – 100 mm/min)
• Handheld remote unit for easy movement and specimen setup
• 20-bit high-resolution load measurement
• Quiet, durable hydraulic power system
Software:
The Universal Testing Software allows users to monitor real-time test data, transfer results to Excel format, generate detailed reports, and customize graphs with different parameters such as load, stress, strain, displacement, and time.
Compliance:
All machines are manufactured in accordance with international standards such as DIN EN ISO 6892-1.
